DETAILS
| product | Beam height(mm) | Flang Wall(mm) | Web Thickness(mm) | Length(m) | Perm. Bending Moment(KN.m) | Perm. Shear Force(KN) | Perm. Deflection | |
| Width | Thickness | |||||||
| H20 Timber Beam | 200 | 80 | 40 | 27 | 3.0 | 5.0 | 11.2 | 1/500 |

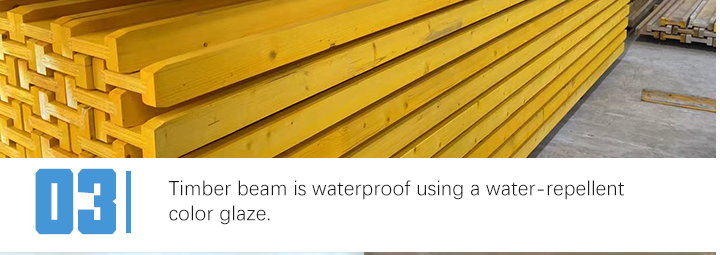

The coating paint – resistance of the coating is 3-5 years. (high adhesion to wood, resistant to ultraviolet radiation, sunlight, atmospheric oxygen, humidity, rain, frost, snow, temperature fluctuations and air pollution, has a high vapor permeability ‘breathable’ ability).
Glue (Dispersion water-based adhesive for wood industry)

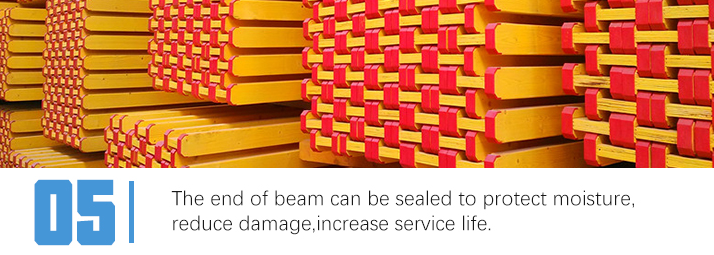

Protection of beams of special cross-cut lacquer(Water-dispersion of colored lacquer based on acrylic. Is designed to protect the end cuts of timber and plywood from cracking and moisture absorption. Resists growth of fungi, mould and blue Also according to the customer beam can be protected from rain, a special packaging film.)
